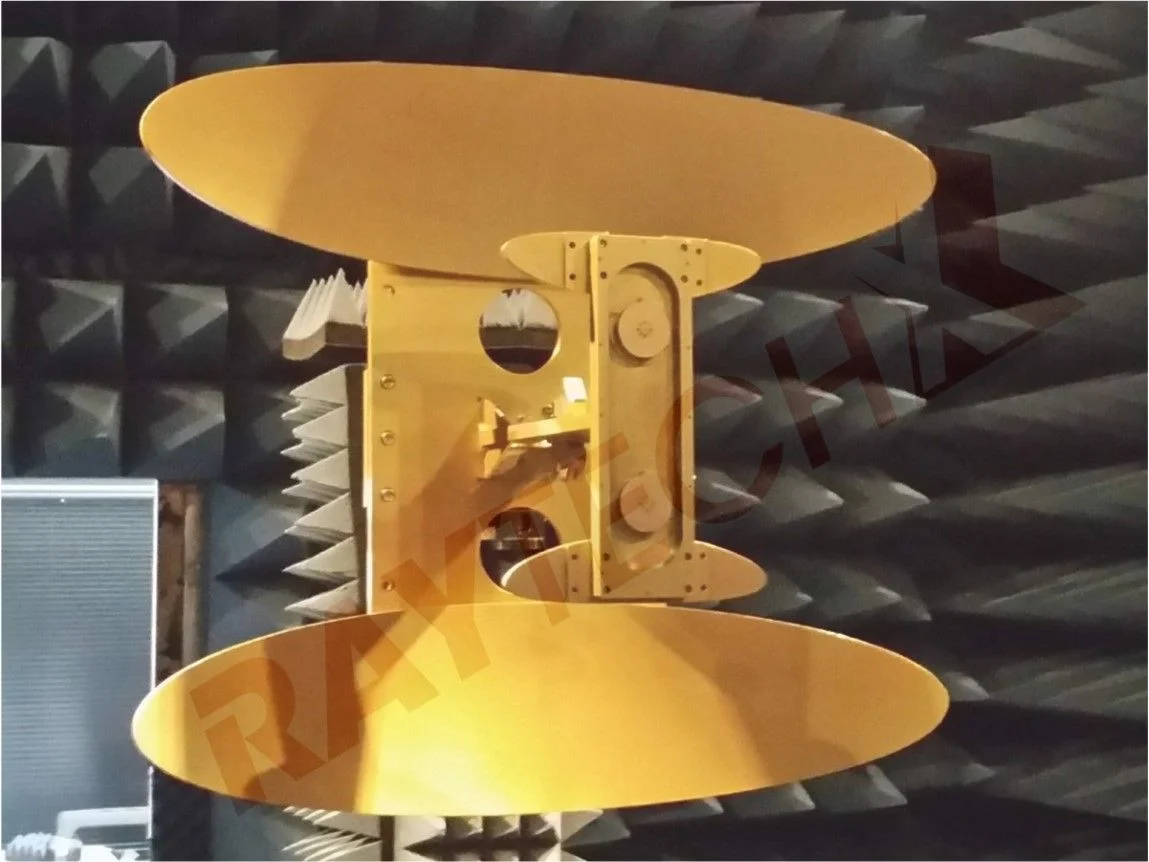

ANR Series, Reflector Antenna
Cassegrain, Prime Focus, Offset, Cosecant Standard & Custom Design
RAYTECH offers various reflector antennas which are fully tested for all pertinent characteristics and specifications up to 110 GHz. Our standard material for the reflector is carbon fiber with high quality conductive paint on the reflector surface. Other materials tailored to low cost or weight reduction are available upon request.
ANR series can be offered with full integration of other components such as OMT, polarizer, signal source and so on.
| Model Number | Frequency (GHz) | Gain (dBi) | Beamwidth (E/H) Degrees | Size (Inch) | Data Sheet |
|---|---|---|---|---|---|
| ANRC-P06A0DL0 | 26.5 - 40.0 | 31.0 | 3.5 x 3.5 | 6.0" Diameter | Download |
| ANRC-P18A0DL0 | 26.5 - 40.0 | 42.0 | 1.5 x 1.5 | 18.0" Diameter | Download |
| ANRC-P06W01 | 90.0 - 98.0 | 39.0 | 1.4 x 1.4 | 6.0" Diameter | Download |
| ANRC-O36W0SEC | 90.0 - 98.0 | 50.0 | 0.24 x 0.95 | 36" x 9" | Download |
