Raytech Waveguide Horn Antennas
Scalar Horns, Conical Horns, Pyramidal Horns, Sectoral Horns, Potter Horns, & Lens Horn up to 140 GHz
Raytech offers one of the industry’s most comprehensive horn antenna portfolios, covering operation up to J-band (325 GHz). Our selection includes pyramidal, conical, scalar, Potter, sectoral, and fully custom horn designs, each optimized for precision beam control, stable gain, and broadband performance.
Horns are available with linear or circular polarization, as well as dual-input configurations using orthomode transducers (OMTs) for flexible system integration. From measurement setups to SATCOM, radar, and cutting-edge millimeter-wave applications, Raytech horns deliver the performance, symmetry, and low sidelobe levels required for advanced RF engineering.

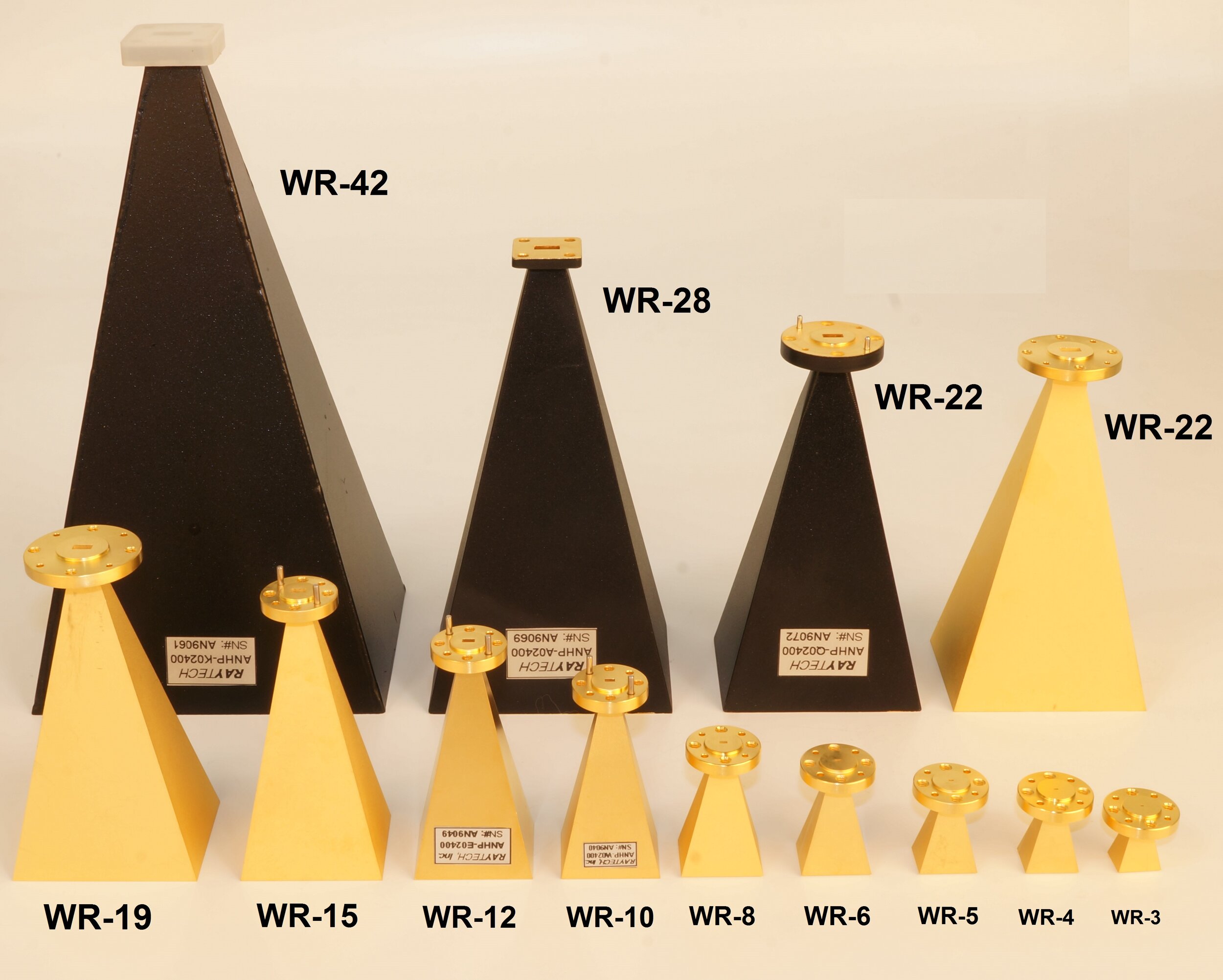

Standard Pyramidal Horn, 20 dB
Data Sheet Coming soon
Standard Pyramidal Horn, 24 dB
(click image for data sheet)
Scalar Horn
Full waveguide bandwidth
Beam symmetry
Low sidelobe level
Low cross polarization
Beamwidth from 10 - 60 deg
Pyramidal, Conical, Sectoral, & Lens Horn
Standard Pyramidal Horn: 20 & 24 dBi Gain
Standard Conical Horn: 21 dBi Gain
Customized for low sidelobe level
Lens integration for compact profile
Potter Horn
Narrow bandwidth
Beam symmetry
Low cost
Low sidelobe level
Low cross polarization
Need Something Special?
| Category | Model Number | Frequency (GHz) |
Gain (dBi) |
HPBW (E x H) degrees |
Size (Inch) |
Note |
|---|---|---|---|---|---|---|
| Pyramidal | ANHP-XX20 | up to 325 GHz | 20.0 | 18.0 | Available in Datasheet | 20 dB Standard Gain Horn Coming Soon |
| Pyramidal | ANHP-XX24 | up to 325 GHz | 24.0 | 12.0 | Available in Datasheet | 24 dB Standard Gain Horn |
| Conical | ANHC-3504OC | 33.0 - 35.0 | 4.0 | 120.0 | 1.13"(Dia) x 0.95"(L) | HPBW = 120°, CP |
| Scalar | ANHS-KU15 | 12.4 - 18.0 | 15.0 | 34.0 | 2.40"(Dia) x 5.01"(L) | |
| Scalar | ANHS-KA15OQ | 17.0 - 31.0 | 15.0 | 30.0 | 2.00"(Dia) x 1.78"(L) | Constant Beamwidth |
| Scalar | ANHS-KA20OQ | 17.0 - 31.0 | 20.0 | 18.0 | 3.22"(Dia) x 3.39"(L) | Constant Beamwidth |
| Scalar | ANHS-Q018 | 33.0 - 50.0 | 18.0 | 25.0 | 1.22"(Dia) x 2.77"(L) | |
| Potter | ANHD-3512CZ0 | 34.0 - 36.0 | 23.0 | 12.0 | 2.90""(Dia) x 12.61"(L) | Pressurized Horn Cover |
| Potter | ANHD-9436CS0 | 92.0 - 96.0 | 15.0 | 36.0 | 0.35""(Dia) x 0.85"(L) | |
| Sectoral | ANHT-KU2060W0 | 12.4 - 18.0 | 15.0 | 20.0 x 60.0 | 1.97"(E) x 0.85" (H) 5.50"(L) | |
| Sectoral | ANHT-A06016W0 | 26.5 - 40.0 | 15.0 | 60.0 x 16.0 | 0.38"(E) x 1.93" (H) 3.00"(L) | |
| Sectoral | ANHT-A01356W0 | 26.5 - 40.0 | 15.0 | 13.0 x 56.0 | 1.90"(E) x 0.43" (H) 3.00"(L) |
