76 GHz to 81 GHz AXRT Series
AXRT-7702T2, 2 GHz Instantaneous Bandwidth with Fixed Target Distance
Product Description

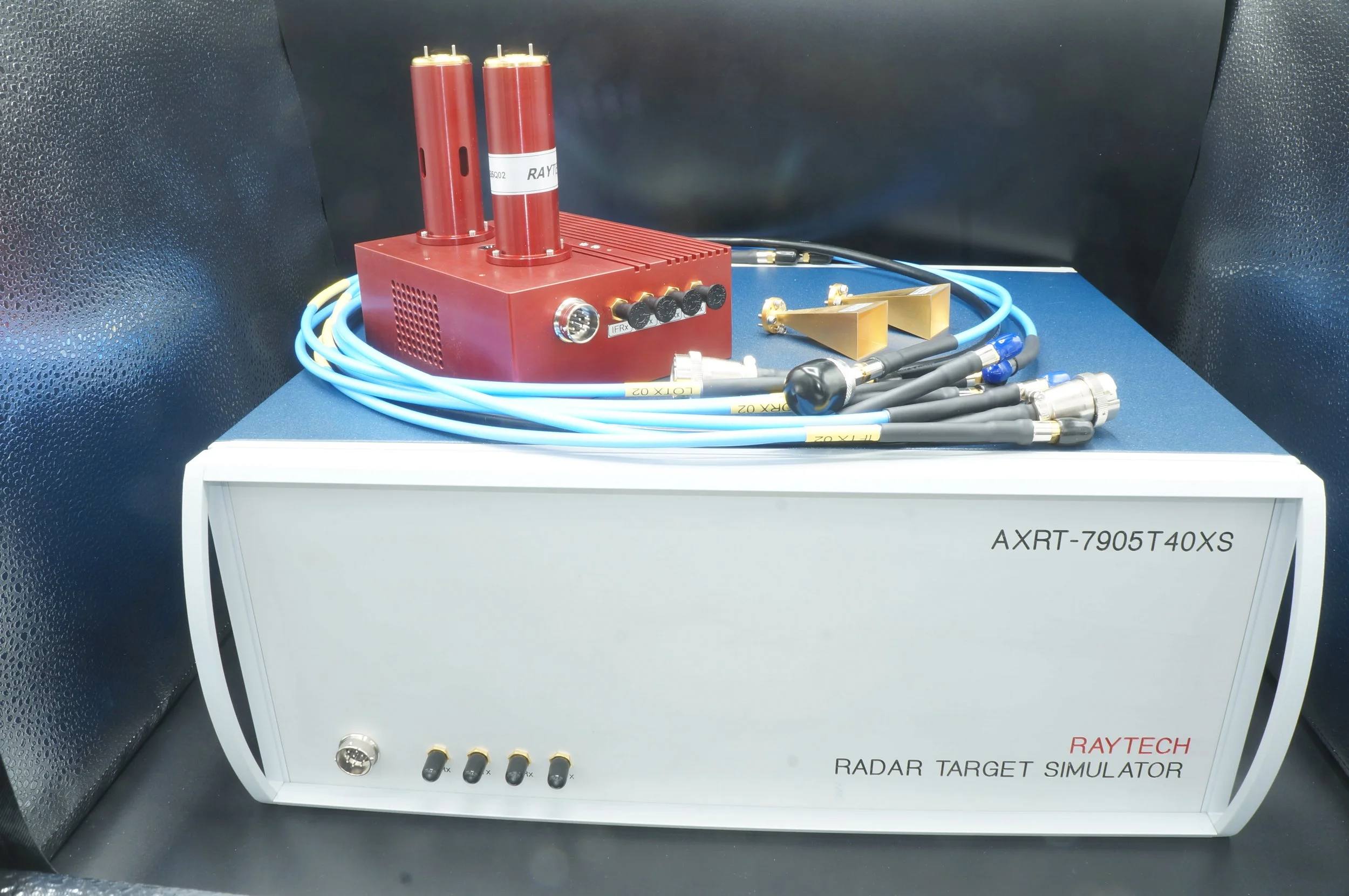

Raytech’s AXRT series Automotive Radar Target Simulator (ARTS) is designed to cover 76 – 81 GHz, providing realistic moving targets at fixed or continuous distances with a target speed variation from –360 km/h to +360 km/h range. Raytech’s AXRT series employs analog delay lines to enhance 5 GHz instantaneous bandwidth covering 4 - 300 m target distances in 256 steps. Furthermore, the target distance step resolution for far- & short-range can be reconfigured upon the customer’s request as shown in Table 1. Raytech employs an 8 bit (256 step) switch matrix to realize continuous target range as the standard model but the resolution can be increased up to 12 bits upon request.
AXRT-8005C0, 5 GHz Instantaneous Bandwidth with continuous Target Distance
Customers can measure the average power and occupied bandwidth through IF port (SMA) on the real panel or Raytech can add signal analyzer in the same box upon request.
Raytech’s AXRT series is the most cost effective but robust target simulator, specially developed for volume production line.
Table 1 Target distance setup example
