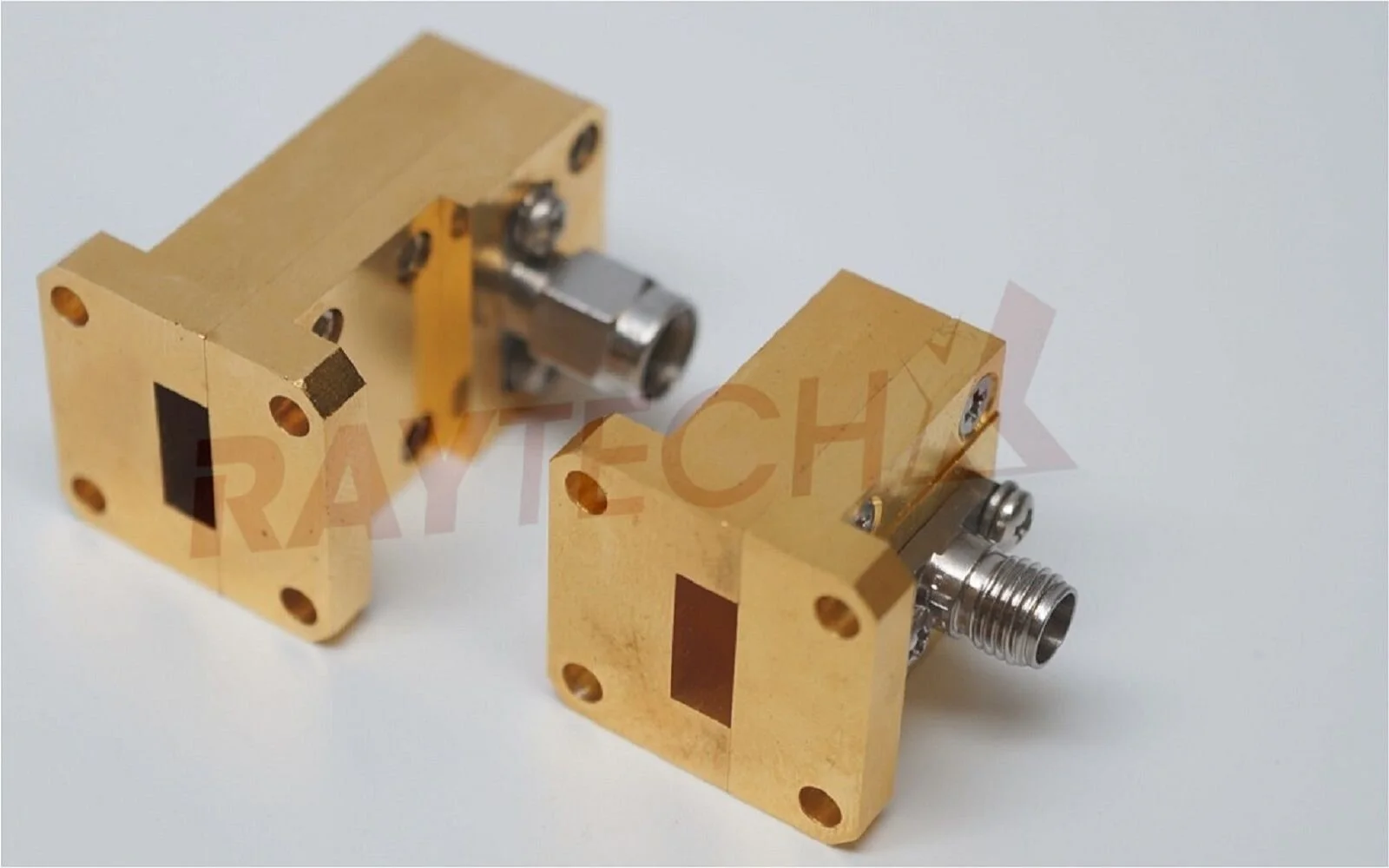

Raytech Waveguide to Coax Adapters
RC SERIES - Right Angle, Center Pin DC Open
E G SERIES - End Launch, Center Pin Grounded
EC SERIES - End Launch, Center Pin DC Open
Standard Right Angle Configuration
Full Waveguide Bandwidth
Low Insertion Loss
VSWR < 1.4:1
18 -110 GHz
Center Pin Coupled
Standard End-Launch Configuration
More than Full Waveguide Bandwidth
Low Insertion Loss
VSWR < 1.4:1
18 - 110 GHz
Center Pin Shorted, High Power Handling
EGB model: Ultra Broadband
Raytech's TRCW-EC series adapters are
The first commercially available end-launch configuration with center pin DC opened to the waveguide housing. EC series adapters cover full waveguide band (VSWR < 1.4:1) with exceptionally low insertion loss and are available from 18 to 110 GHz in K through W bands.
| Type | Model Number | Frequency | Download | Description | Notes |
|---|---|---|---|---|---|
| EC | TRCW-289FEC0 | 26.5 – 40 GHz | Download | WR-28 to 2.92mm, Female, End Launch | Center Pin Floating |
| EG | TRCW-101FEG0 | 67 – 110 GHz | Download | WR-10 to 1.0mm, Female End Launch | |
| TRCW-101MEG0 | 67 – 110 GHz | Download | WR-10 to 1.0mm, Male, End Launch | ||
| TRCW-121FEGB | 60 – 110 GHz | Download | WR-12 to 1.0mm, Female, End Launch | Ultra Broadband Performance | |
| TRCW-121FEG0 | 60 – 90 GHz | Download | WR-12 to 1.0mm, Female, End Launch | ||
| TRCW-121MEG0 | 60 – 90 GHz | Download | WR-12 to 1.0mm, Male, End launch | ||
| TRCW-151FEGB | 50 – 90 GHz | Download | WR-15 to 1.0mm, Female, End Launch | Ultra Broadband Performance | |
| TRCW-151MEGB | 50 – 90 GHz | Download | WR-15 to 1.0mm, Male, End Launch | Ultra Broadband Performance | |
| TRCW-151FEG0 | 50 – 75 GHz | Download | WR-15 to 1.0mm, Female, End Launch | ||
| TRCW-198MEG0 | 40 – 60 GHz | Download | WR-19 to 1.85mm, Male, End Launch | ||
| TRCW-198FEG0 | 40 – 60 GHz | Download | WR-19 to 1.85mm, Female, End Launch | ||
| TRCW-289FEG0 | 26.5 – 40 GHz | Download | WR-28 to 2.92mm, Female, End Launch | ||
| TRCW-D89MEG0 | 18 – 40 GHz | Download | WR-180 to 2.92mm, Male,End launch | ||
| TRCW-D89FEG0 | 18 – 40 GHz | Download | WR-180 to 2.92mm, Female,End launch | ||
| TRCW-429FEG0 | 18 – 26.5 GHz | Download | WR-42 to 2.92mm, Female, End Launch | ||
| TRCW-90SFEG0 | 8.2 – 12.4 GHz | Download | WR-90 to SMA, Female, End Launch | ||
| RC / RG | TRCW-121FMRC0 | 60 – 90 GHz | Download | WR-12 to 1.0mm, Male, Right Angle | TRCW-198FRC0 | 40 – 60 GHz | Download | WR-19 to 1.85mm, Female, Right Angle |
| TRCW-198MRC0 | 40 – 60 GHz | Download | WR-19 to 1.85mm, Male Right Angle | ||
| TRCW-349FRC0 | 22 – 33 GHz | Download | WR-34 to 2.92mm, Female, Right Angle | ||
| TRCW-D89FRG0 | 18 – 40 GHz | Download | WR-180 to 2.92mm, Female, Right Angle | ||
| TRCW-D89MRG0 | 18 – 40 GHz | Download | WR-180 to 2.92mm, Male, Right Angle | ||
| TRCW-519FRC1 | 15 – 22 GHz | Download | WR-51 to 2.92mm, Female, Right Angle | Special flange | |
| TRCW-759FRC0 | 10 – 15 GHz | Download | WR-75 to 2.92mm, Female, Right Angle |
