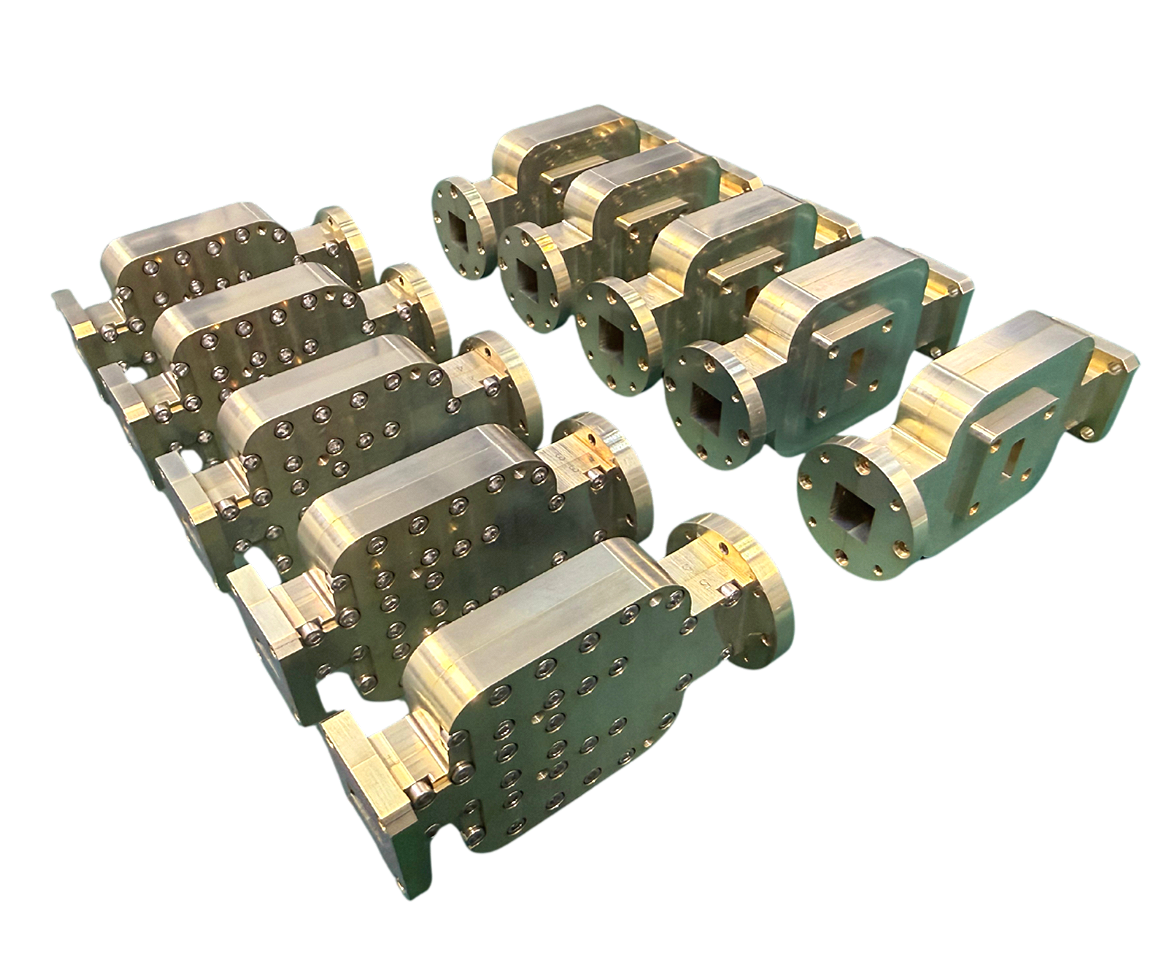

Antenna Accessories, Broadband Orthomode Transducer (OMT), 17 - 31 GHz
Part Number: ANSO-46KASF0
The Raytech Broadband Orthomode Transducer (OMT) ANSO-46KASF0 is engineered for superior performance in K- & Ka-band SATCOM systems. Operating across a wide 17–31 GHz frequency range, this precision component features WR-42 V/H ports (UG-425/U) and a square waveguide common port (UG-425/U) for seamless integration. Compact in size at 3.6" × 1.13" × 2.06", the ANSO-46KASF0 is designed for high power handling, excellent channel separation, and long-term reliability in demanding satellite communication environments.
Electrical Specifications
Operating Frequency: 17 - 21 GHz & 27 - 31 GHz for Both V- & H-port
Port Isolation: 70 dB between V- & H-port
XPD: 40 dB
Mechanical Specifications:
Ports (V & H): WR-42, UG-595/U
Ports (A): □ .XXX, UG-425/U
Size: 3.60” x 1.13” x 2.06”
