ANTS Series, Antenna Assemblies

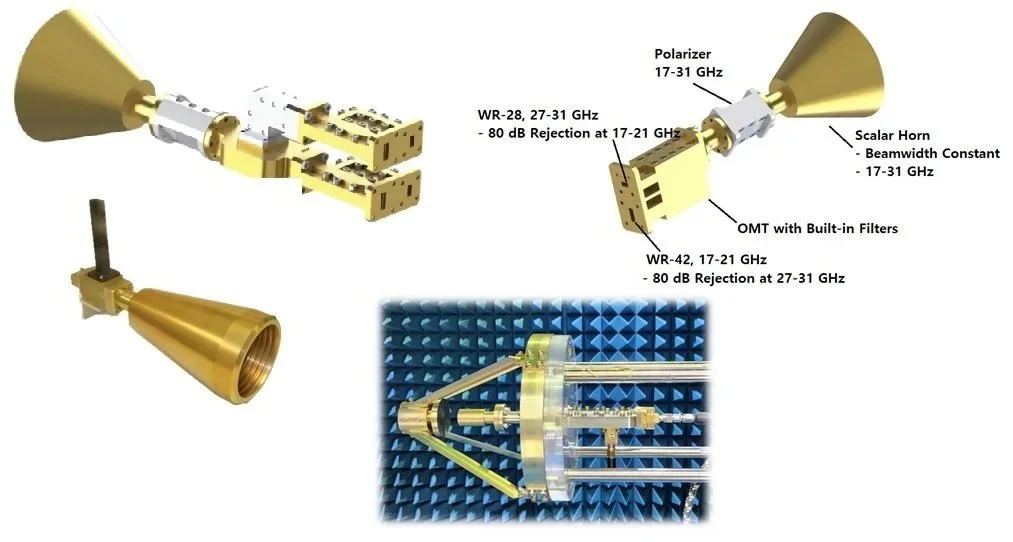

Raytech’s ANTS series offers a comprehensive range of antenna assemblies, including feed horn, reflector, lens, and sectoral horn designs. Configurable with polarizers, OMTs, and diplexers, these systems support both linear and circular polarization, with outputs in coaxial or waveguide formats. Covering an extensive frequency range from 1 to 220 GHz, the ANTS series delivers high performance for diverse RF and microwave applications.
RAYTECH has an extensive experience in designing lens antennas operating from X-band to W-band. Assembled with Raytech's scalar horn (ANHS series) feed, the antenna produces excellent beam symmetry and low sidelobe level. Raytech also provides dual polarization and circular polarization options as required. Please fill out the request form below.
Accessories: PO = Polarizer, OM = OMT, DX = Diplexer, FI = Filter, CX = Coax
| Model Number | Frequency (GHz) | Gain (dBi) | Beamwidth | Assembly |
|---|---|---|---|---|
| ANTS-1420DC0 | 13.5 - 15.0 | 20 | 18 | SC+OM+CX |
| ANTS-KA20CDW0 | 17 - 21 & 27 - 31 | 20 | 18, Constant | SC+PO+OM+FI |
| ANTS-KA20CQW0 | 17.0 - 31.0 | 20 | 18, Constant | SC+PO+OM+DX |
