Waveguide Transition: Bend, Twist, Flange, Band
BACK to fundamental ….
Waveguide transitions are among the simplest RF components, yet they can be critical for completing an RF system—especially in applications with strict size constraints, such as drones, airborne platforms, and space systems.
Raytech’s innovations, including 90-degree shim-style twists and compact rectangular-to-rectangular or rectangular-to-circular transitions, significantly reduce size and optimize the RF system’s overall form factor.
Additionally, Raytech’s Patent Pending “RayCube” design offers a versatile range of options for laboratory test setups. Raytech’s hard work is not just focused on developing state-of-the-art new designs, but also on refining and improving the most fundamental components.
Model #: TRWX-W. W-band RayCube, with a 0.8” cube that allows versatile configurations in laboratory test setups. Raytech's TRWX series offers both H-plane bend and H-plane bend with twist configurations by simply exchanging the top housing.
Waveguide Bend
- TRWB Series
- E-, H-bend, Custom Angle
- Standard & Compact Length
Waveguide Twist
- TRWT Series
- 90 deg, Custom Angle
- Standard, Compact & Shim

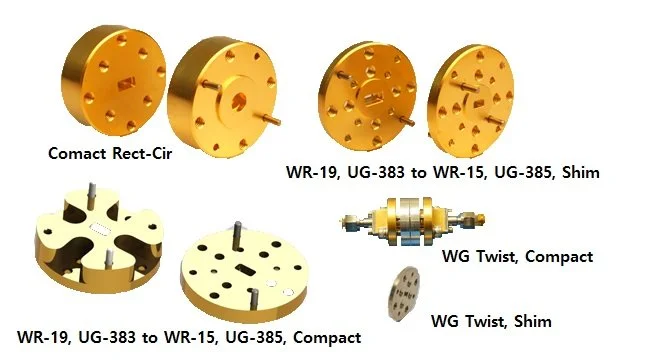

Rect - Rectangular/circular
- TRWJ / WGST Series (Straight)
- Standard / Custom Flange
- Standard, Compact & Shim Length
| Category | Model Number | Type | Frequency GHz |
Waveguide | Flange | Size Inch |
Note | Download |
|---|---|---|---|---|---|---|---|---|
| TRWB | TRWB-H1290S0 | H-Plane | E-band | WR-12 | UG-387/U | 0.9 x 0.9 x 0.75 | Standard | - |
| TRWT | TRWT-90A10S0 | Twist 90 deg | W-band | WR-10 | UG-387/UM | 0.75 (Dia) x 0.06 (L) | Shim | Download |
| TRWT | TRWT-90B10S0 | Twist 90 deg | W-band | WR-10 | UG-387/UM | 0.75 (Dia) x 0.35 (L) | Compact | Download |
| TRWT | TRWT-90A12S0 | Twist 90 deg | E-band | WR-12 | UG-387/U | 0.75 (Dia) x 0.07 (L) | Shim | Download |
| TRWT | TRWT-90B120 | Twist 90 deg | E-band | WR-12 | UG-387/U | 0.75 (Dia) x 0.35 (L) | Compact | Download |
| TRWT | TRWT-90A15S0 | Twist 90 deg | V-band | WR-15 | UG-385/U | 0.75 (Dia) x 0.08 (L) | Shim | Download |
| TRWT | TRWT-90B15S0 | Twist 90 deg | V-band | WR-15 | UG-385/U | 0.75 (Dia) x 0.35 (L) | Compact | Download |
| TRWJ | TRWJ-S1519C0 | Band Tran. | 46.0 - 75.0 | WR-19 to WR-15 | UG-383/U to UG-385/U | 0.17 | Compact | Coming Soon |
| WGST | WGST-053S0 | Straight | 140.0 - 220.0 | WR-5 | UG-387/UM | 3.00 | Custom | Coming Soon |
