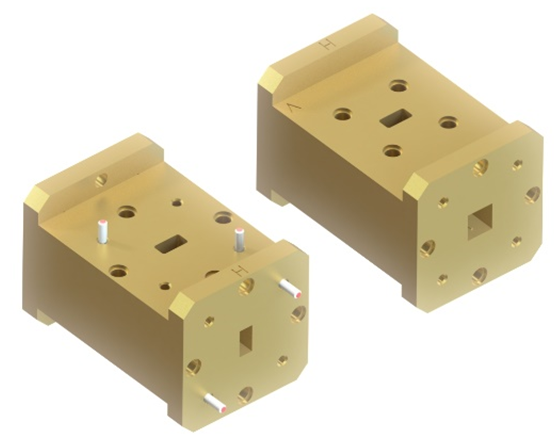

Antenna Accessories, Broadband Orthomode Transducer (OMT), 33 - 53 GHz
Part Number: ANSO-F0Q0S0
The ANSO-F0Q0S0 Orthomode Transducer (OMT) delivers exceptional performance across 33.0 – 53.0 GHz, engineered for ultra-broadband coverage, low insertion loss, and superior port isolation up to 60 dB. Its compact WR-22 design with UG-599/U or UG-383/U interfaces ensures seamless integration into advanced millimeter-wave systems. Built from precision aluminum with gold plating, this OMT provides reliable high power handling and long-term durability. Ideal for satellite communications, test instrumentation, and radar applications, the ANSO-F0Q0S0 combines cutting-edge design with proven Raytech engineering quality.
Electrical Specifications
Operating Frequency: 33 - 53 GHz for Both V- & H-port
Port Isolation: 60 dB between V- & H-port
XPD: 40 dB
Mechanical Specifications:
Ports (V & H): WR-22, UG-383/U (Contact Raytech for UG-599/U Flange)
Ports (A): □ .219”, UG-383/U
Size: 1.70” X 1.13” x 1.13”
