Antenna Accessories, Polarizer, 17 - 31 GHz, Broadband, Low Axial Ratio
Features:
Compact DesignLow Loss
High Isolation
High Power Handling
Part Number: ANHS-KA15OQ

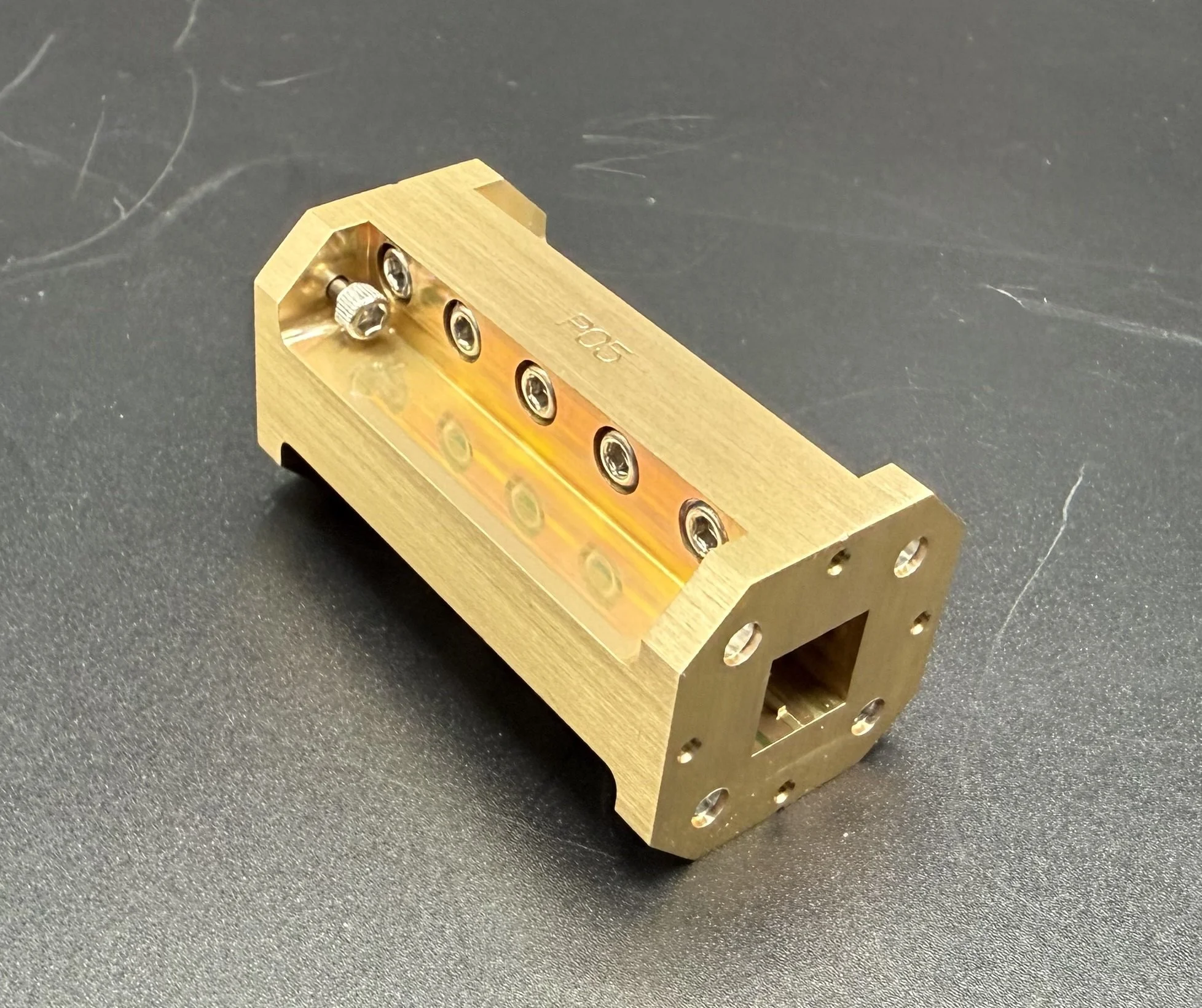

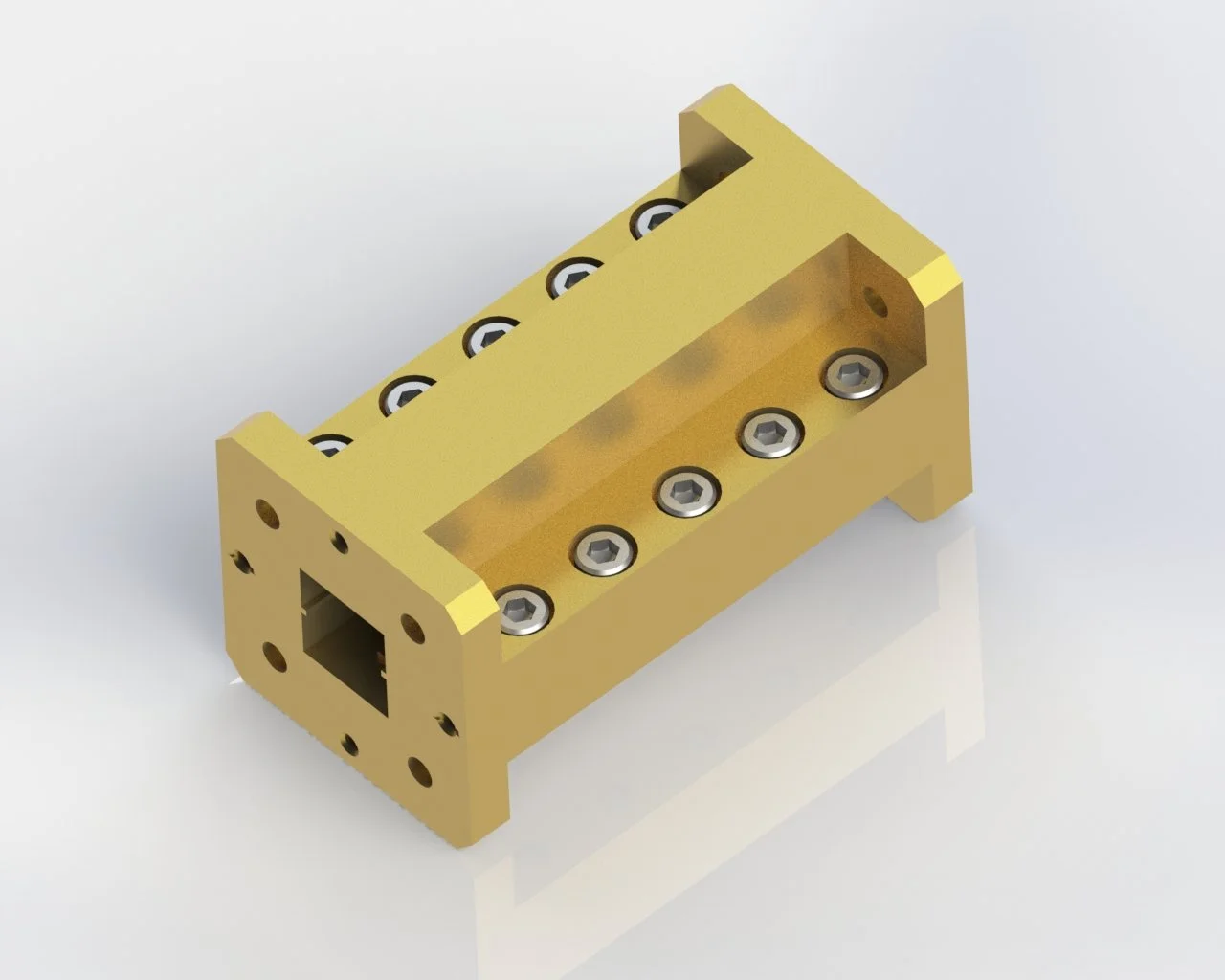

The Raytech Polarizer ANSP-24SSW0 is a high-performance antenna accessory designed for K/Ka-band SATCOM applications, operating across a wide 17–31 GHz frequency range. Engineered for low axial ratio and high power handling, it ensures optimal polarization control in demanding satellite communication environments.
Electrical Specifications
Operating Frequency: 17.0 - 31.0 GHz
Axial Ratio: 1.0 dB Max
Mechanical Specifications:
Ports: * .388 Square, UG-425/U
Size: 1.13” (W) x 1.13” (H) x 2.10” (L)
Material: Aluminum
* Contact Raytech for other size or flange type
