Planar Antenna Array, 1.2 – 1.4 GHz
Part Number: ANPM-013A40

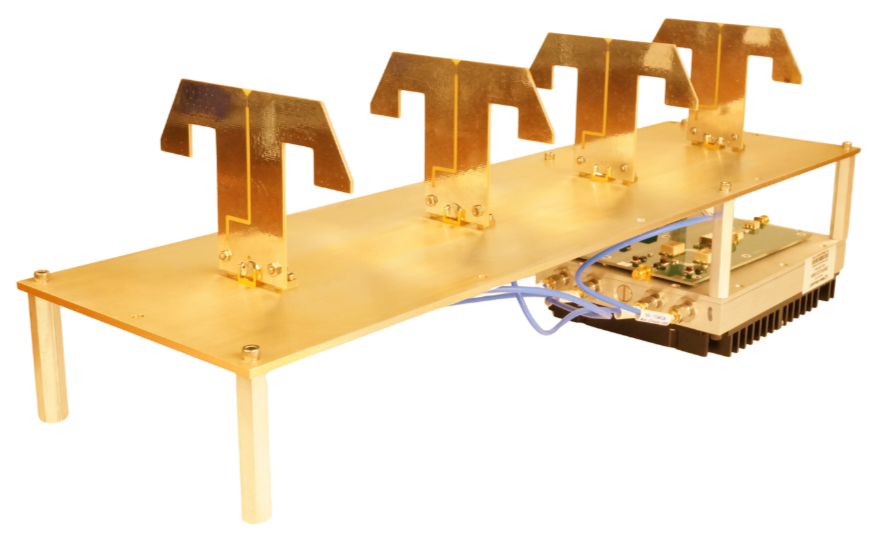

The Raytech ANPM-013A40 Planar Antenna Array is a high-performance L-band antenna operating from 1.2 to 1.4 GHz. The 1x4 array delivers 11 dB gain with a 68° x 26° beamwidth, supporting linear polarization and achieving 25 dB cross-polarization suppression. The compact form factor (18" x 5" x 2.9") integrates four arrays with a COTS high-power combiner, making it suitable for radar, communications, and test applications.
Electrical Specifications
Operating Frequency: 1.2 - 1.4 GHz
Gain: 11.0 dBi
Half Power Beamwidth: 68° x 26°
XPD: 25 dB
Mechanical Specifications:
Port: SMA (F)
Size: 18.00” x 5.00” x 2.90”
Material: Aluminum Fixture, FR-4 Antenna Element
