ANHP-XX24 Series: 24 dB Pyramidal Gain Horn Antennas
Part Number: ANHP-XX24 Series

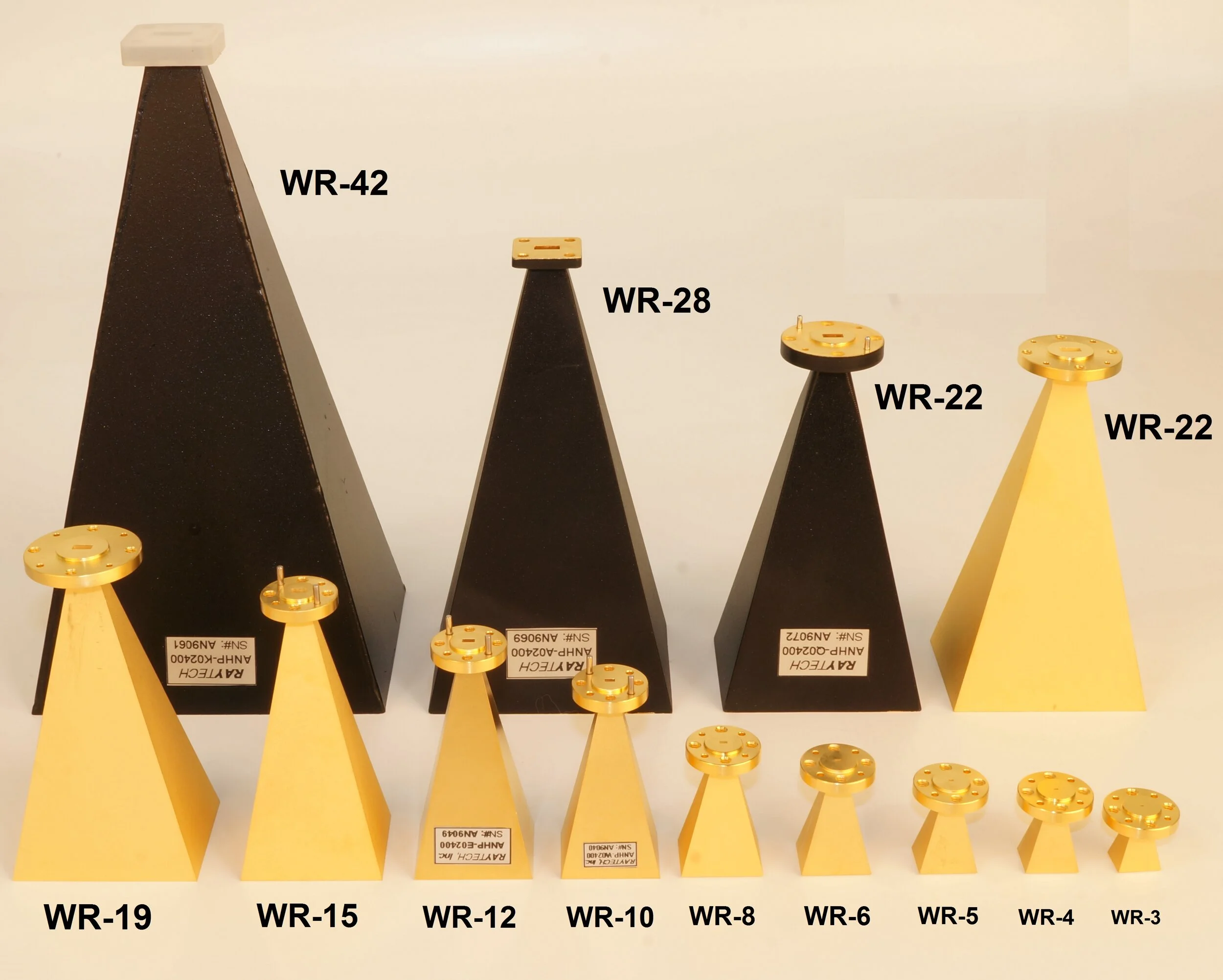

The Raytech ANHP-XX24 Series is a family of precision-engineered pyramidal horn antennas designed for high-performance applications in measurement, research, and communication systems. Each antenna in the series delivers 24 dB nominal gain at the band center with a narrow ~12° half-power beamwidth, ensuring excellent directivity and pattern consistency across frequency.
Built with standard rectangular waveguide interfaces (UG-series flanges), the ANHP-XX24 series offers seamless integration into existing mmWave and sub-THz systems. Models are available from WR-28 through WR-03, covering frequencies up to 325 GHz (J-band), making them an ideal solution for next-generation test ranges and advanced communication setups.
The antennas feature precision-machined apertures and internal surfaces, ensuring low insertion loss, high polarization purity, and excellent repeatability in both laboratory and field environments. Constructed from high-grade aluminum or copper with durable surface treatments (chromate or anodized finishes, with gold available on request), they provide robust, long-term performance.
