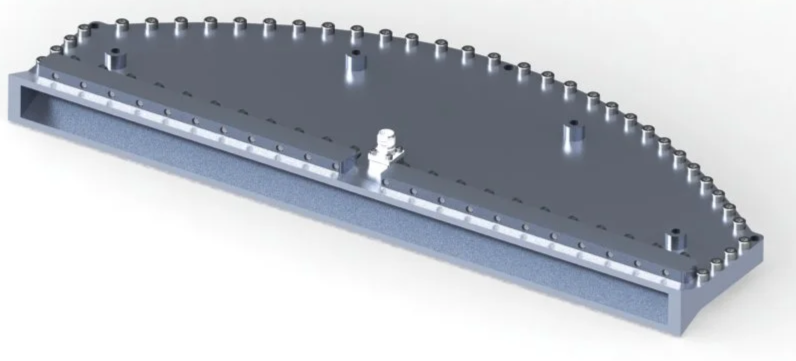

COMPACT FOLDED SECTORAL HORN, KA-BAND
Part Number: ANHT-KA3502F0
The Raytech ANHT-KA3502F0 is a Ka-band folded sectoral horn antenna engineered for ultra-compact performance across the 26.5–40 GHz frequency range. Featuring a 35° H-plane and 2° E-plane half-power beamwidth, this antenna delivers precise directional control while maintaining a remarkably small footprint of 10.80" × 4.25" × 0.77". The default input is a 2.92 mm (F) connector, with an optional WR-28 waveguide input available upon request. Designed for high-frequency applications, the ANHT-KA3502F0 combines low-profile design with high-performance beam shaping, making it ideal for advanced millimeter-wave systems.
Electrical Specifications
Operating Frequency: 26.5 - 40.0 GHz
Gain: 26.0 dBi
Half Power Beamwidth: 35.0 x 2.0 degrees
Mechanical Specifications:
Ports: 2.92 mm (F)
Size: 10.80” x 4.25” x 0.77”
Material: Aluminum
