Features:

• UAV Application

• Low Sidelobe Level

• Excellent Beam Symmetry

• Full Ka-band Coverage

• High Isolation between V and H Ports

Part Number: ANLF-6ADSC2

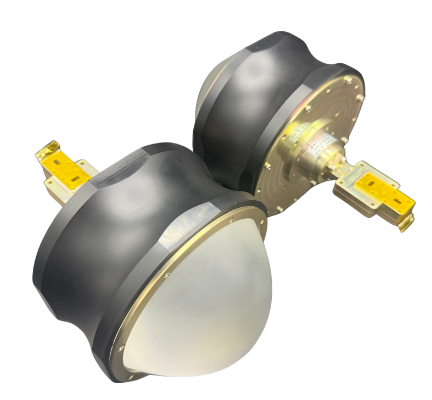

The ANLF-6ADSC2 is a high-performance, compact lens antenna designed for full Ka-band operation (26–40 GHz). Featuring a 6-inch diameter lens fabricated from durable Rexolite, this antenna ensures excellent RF transparency, low insertion loss, and long-term mechanical stability.

Engineered for superior radiation performance, the ANLF-6ADSC2 achieves a minimum sidelobe level of 20 dB across the entire Ka-band, providing clean beam patterns and enhanced signal integrity. The antenna supports dual-linear polarization through the integration of Raytech’s high-performance OMT (ANSO-FAC2S0), delivering excellent polarization isolation and efficiency.

The C2 configuration is designed with vertical (V) and horizontal (H) ports in the same plane, simplifying system integration and improving mechanical alignment in compact setups.

This model is specifically optimized for compact length, reducing overall antenna size while maintaining consistent ≥20 dB sidelobe performance over the full frequency range. It is ideal for applications where space constraints and high electromagnetic performance are equally critical, including advanced communication systems, radar, and precision measurement environments.

Electrical Specifications

• Operating Frequency: 26.0 — 40.0 GHz

• Gain: 30.0 dBi

• Beamwidth: (E/H): 8.0 / 8.0

• V / H Port Isolation: 45 dB

• Sidelobe Level: 25 dB

• XPD: 35 dB

Mechanical Specifications:

• Ports: WR-28, UG-599/U in Single Plane

• Size: 6.0” Diameter

• Weight: 2.5 lbs

• Material: Rexolite in Delrin Housing
