Lens Antenna for Far-field Application, 26.5 - 40 GHz, Ka-band, Dual Input

Raytech’s Lens Antenna (Model ANLF-A012DL0) delivers 38.5 dBi gain over the full 26.5–40 GHz Ka-band. It features dual-input OMT and low sidelobe levels for high-performance Ka-band connectivity.

Lens  Antenna,Far-field Application, 26.5 - 40 GHz, Dual Input

Features:

  • UAV Application

  • Low Sidelobe Level

  • Excellent Beam Symmetry

  • Full Ka-band Coverage

  • High Isolation between V and H Ports

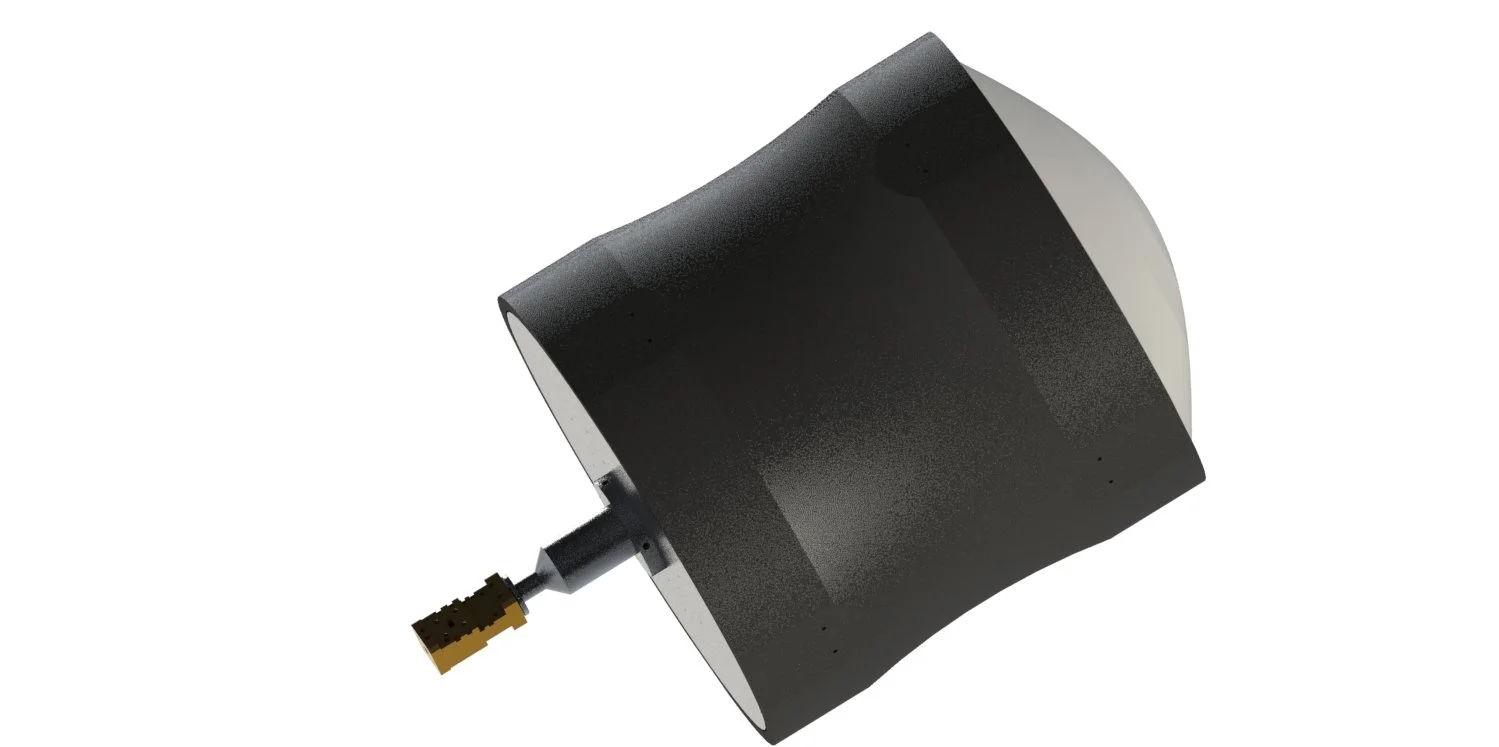

Part Number: ANLF-A012DL0

Raytech’s Lens Antenna (Model ANLF-A012DL0) offers 38.5 dBi gain across the 26–40 GHz range, ensuring full Ka-band coverage. Built from durable Rexolite, it features dual-input OMT and low sidelobe levels for high-efficiency, reliable performance in demanding environments.

Electrical Specifications

  • Operating Frequency: 26.5 — 40.0 GHz

  • Gain: 38.5 dBi

  • Beamwidth: (E/H): 2.0 / 26.0

  • V / H Port Isolation: 40 dB

  • Sidelobe Level: 25 dB

Mechanical Specifications:

  • Ports: WR-28, UG-599/U

  • Size: 12.0” Diameter

  • Weight: 22 lbs

  • Material: Rexolite in Delrin Housing
