Cassegrain Reflector Antenna, 90 - 98 GHz, Lightweight Aluminum
Features:
Low Side Lobe LevelLightweight Aluminum DesignExcellent Beam Symmetry
Part Number: ANRC-P18A0DL0

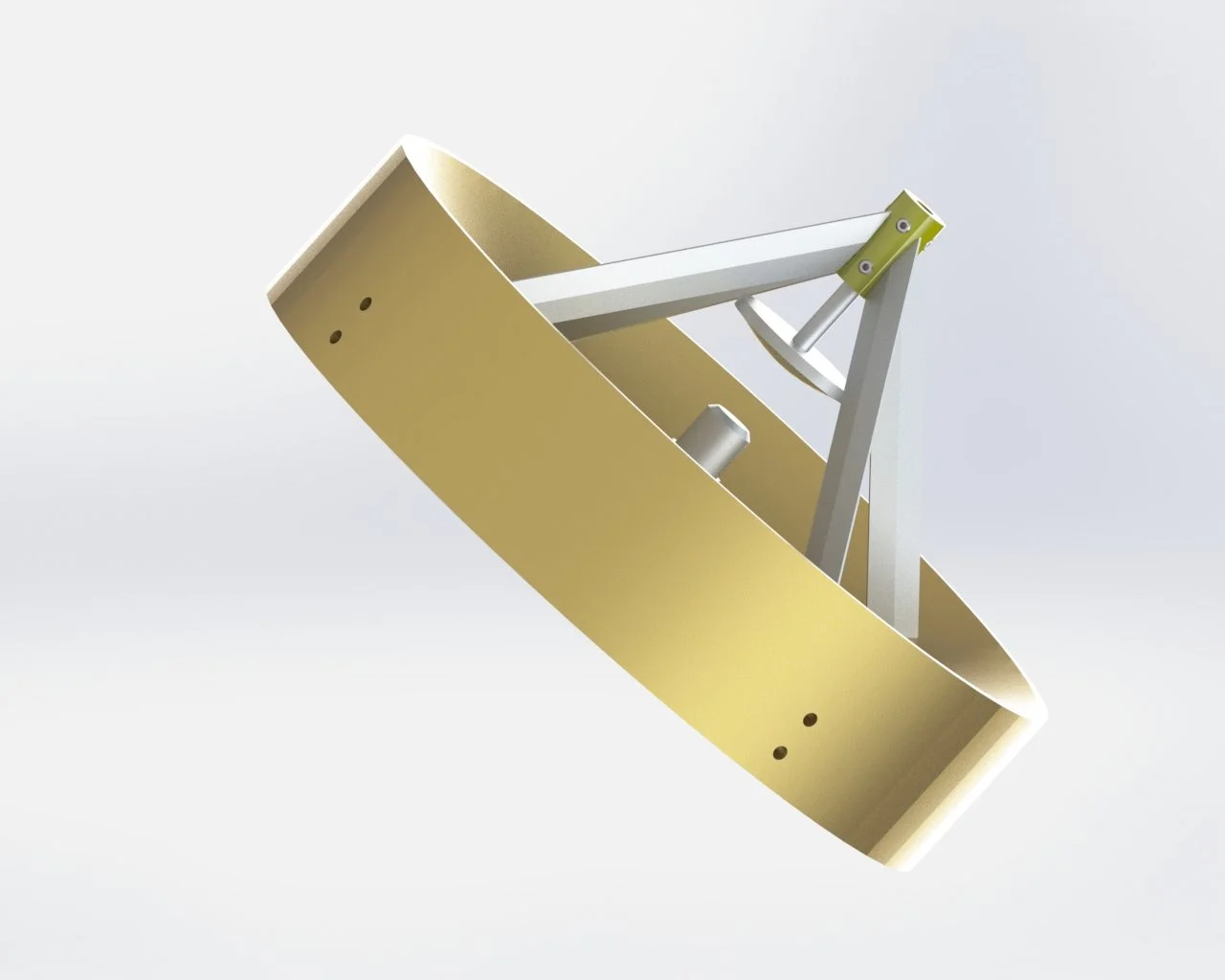

Raytech's Reflector Antenna, Model ANRC-P06W01, is a high-performance Cassegrain antenna engineered for operation in the 90–98 GHz range. With a high gain of 39 dBi, this antenna delivers excellent beam symmetry and low sidelobe levels, ensuring optimal signal quality and directionality. Constructed from lightweight aluminum, it offers robust durability while maintaining a compact, efficient form factor—ideal for advanced mmWave and high-frequency applications.
Electrical Specifications
Operating Frequency: 90.0 - 98.0 GHz
Gain: 39.0 dBi
Beamwidth: 1.4 x 1.4 degrees
Mechanical Specifications:
Ports: WR-10, UG-387/UM
Size: 6.0” Diameter
Material: Aluminum
