Shaped Reflector Antenna, Cosecant Square, 34 - 35 GHz
Features:
Low Side Lobe LevelCosecant Elevation Beam PatternAluminum Reflector Antenna Design
Part Number: ANRO-3533S0

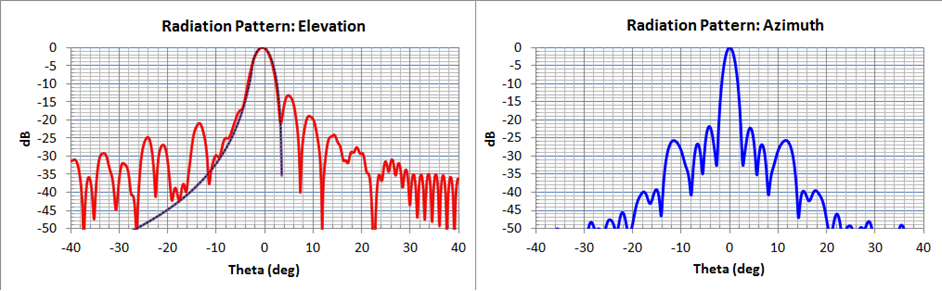

Raytech’s ANRO-3533S0 is a genetically shaped reflector antenna engineered to deliver a cosecant-squared elevation pattern across the 34–35 GHz band. With a 1.8° azimuth beamwidth, 3.6° elevation beamwidth, and > 20 dB sidelobe suppression in both planes, it provides precise, uniform coverage ideal for advanced radar and communication systems.
Designed for airborne downward-looking radar, satellite and UAV downlink applications, and high-altitude relay or surveillance systems, the ANRO-3533S0 ensures consistent ground illumination and reliable performance under demanding operational conditions.
Contact Raytech to discuss customized beam-shaping reflector antenna solutions tailored to your specific frequency band and system requirements.
Electrical Specifications
Operating Frequency: 34.0 - 35.0 GHz
Gain: 33.0 dBi
Beamwidth: 1.8° (Azimuth) x 3.6° (Elevation, Cosecant)
Mechanical Specifications:
Ports: WR-28, UG-599/U
Size: 13.2” x 6.0”
Material: Aluminum
