Antenna, Slotted Waveguide, 17.8 - 20.2 GHz, 34 dBi Gain, SATCOM Application
Applications:
Ultra Low ProfileFull Ka-band Downlink Coverage
Maximum Efficiency Application
Part Number: ANST-190204C0

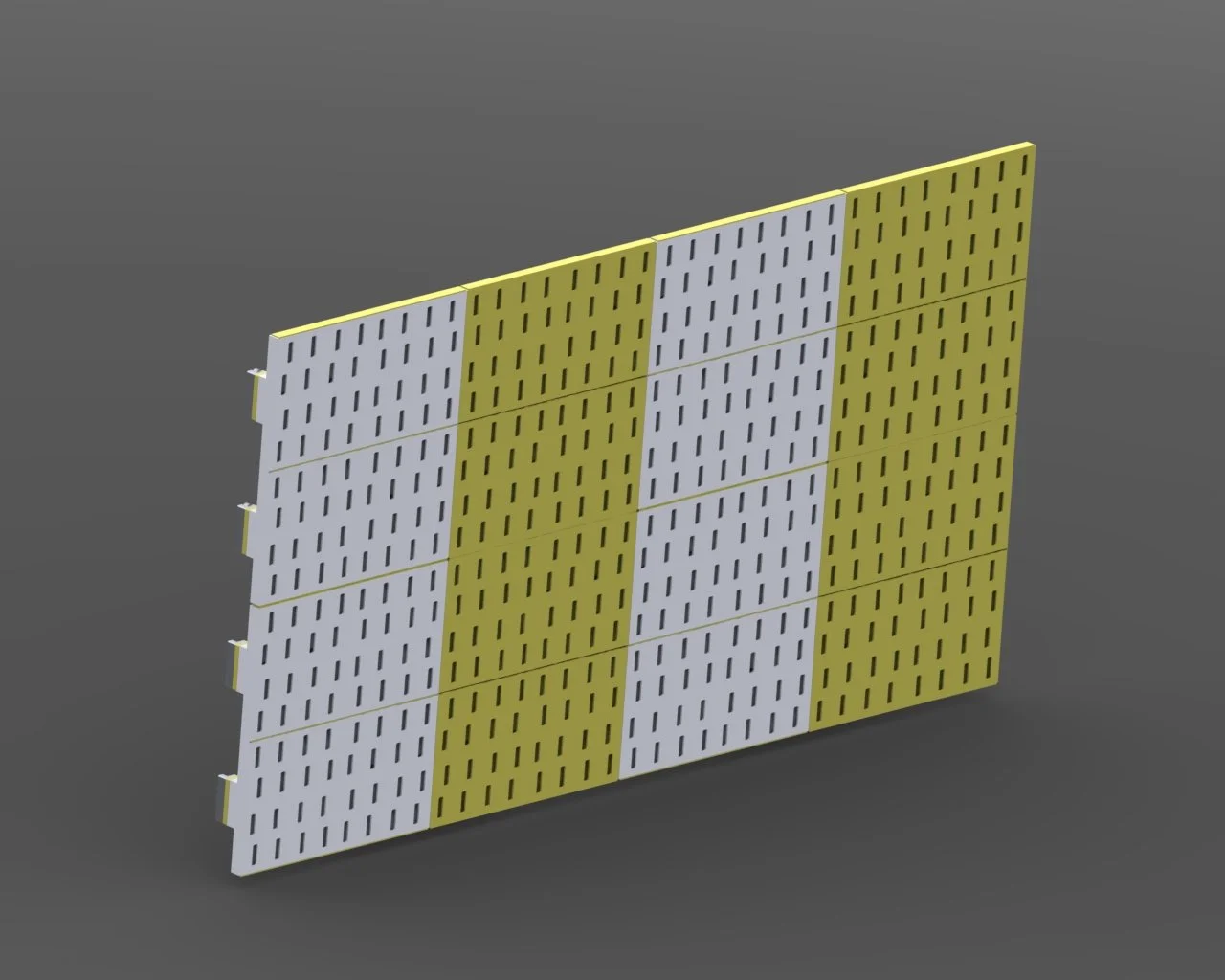

The Raytech ANST-190204C0 is a high-performance slotted antenna designed for full Ka-band downlink coverage, operating across the 17.8 – 20.2 GHz frequency range. Engineered with an ultra-low profile, it features a slim form factor measuring just 8.32" × 15.20" × 1.33", making it ideal for space-constrained installations.
With 34 dBi gain, the antenna delivers maximum efficiency for high-power SATCOM applications. The design offers a precise radiation pattern with a 2.0° beamwidth in the E-plane and 4.0° in the H-plane, enabling accurate directional communication and minimal signal loss.
Perfect for airborne, ground-based, or mobile SATCOM systems demanding compact size, high gain, and robust power handling.
Electrical Specifications
Operating Frequency: 17.8 - 20.2 GHz
Gain: 34.0 dBi
Beamwidth: (E/H): 2.0 / 4.0 degrees
Cross Polarization Deviation 60 dB
Sidelobe Level: 23 dB
Mechanical Specifications:
Ports: SSMA or 2.92mm Female
Size: 8.32” (L) x 15.20” (W) x 1.33” (H)
Weight: 2.9 kgs
Material: Aluminum with Chromate Coating
