Antenna, Slotted Waveguide, 27.5 - 30 GHz, Ka-band SATCOM Application
Applications:
Ultra Low ProfileFull Ka-band Uplink Coverage
Maximum Efficiency Application
Part Number: ANST-190204C0

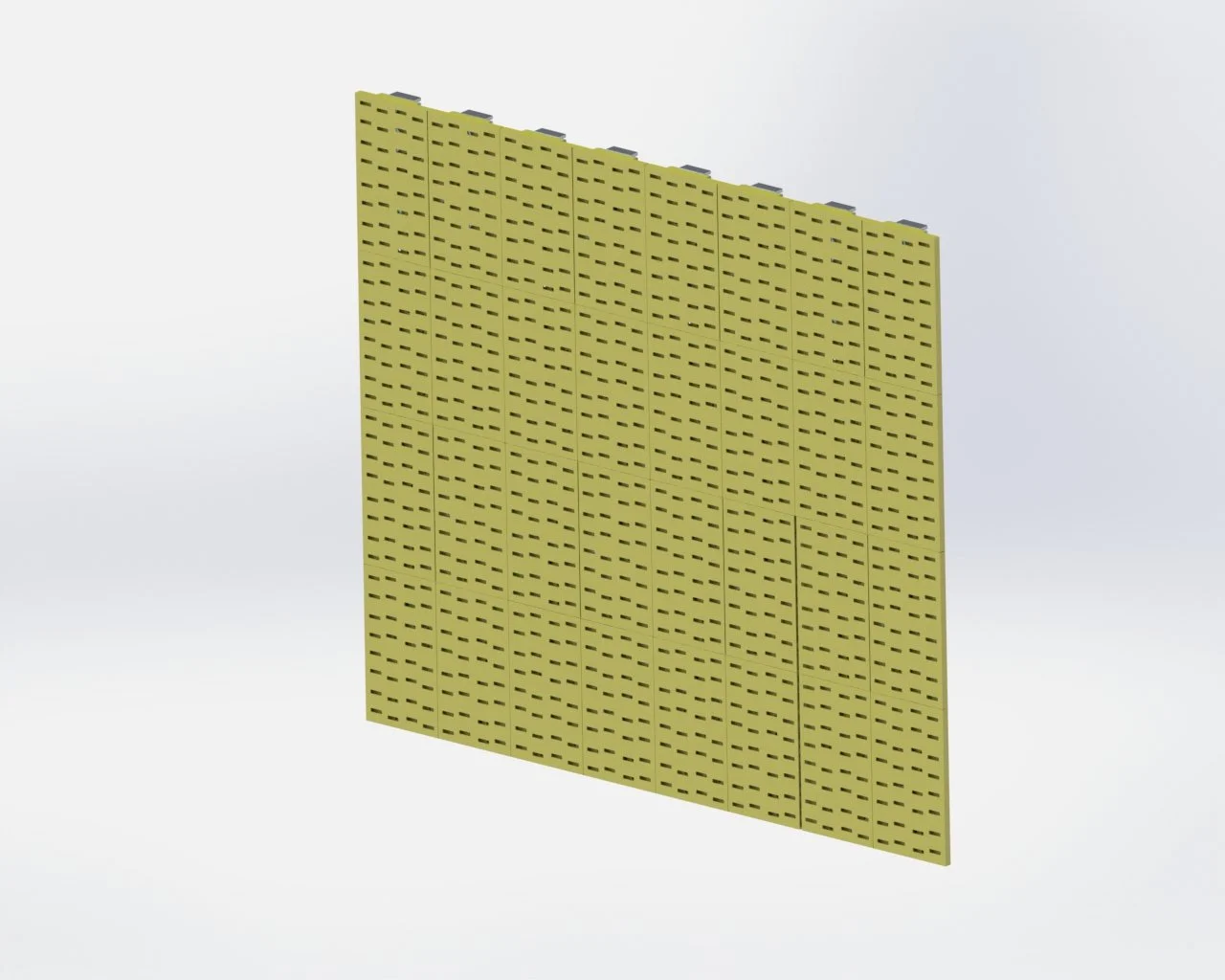

The Raytech Slotted Waveguide Antenna, model ANST-290202C0, is engineered for superior performance in Ka-band SATCOM applications. Operating across 27.5 – 30 GHz with linear polarization, this antenna delivers a high gain of 37 dBi with maximum efficiency. Its precise 2° x 2° half power beamwidth ensures focused directional performance, while the ultra low profile design makes it ideal for space-constrained and aerodynamic installations. Please contact Raytech for circular polarization option.
Electrical Specifications
Operating Frequency: 27.5 - 30.0 GHz
Gain: 37.0 dBi
Beamwidth: (E/H): 2.0 / 2.0 degrees
Cross Polarization Deviation 60 dB
Linear Polarization
Mechanical Specifications:
Ports: SSMA or 2.92mm Female
Size: 10.16” (L) x 11.69” (W) x 1.01” (H)
Material: Aluminum with Chromate Coating
