Waveguide Diplexer, 17.3 - 21 GHz & 27 - 31 GHz & K- & Ka-band SATCOM Application

Raytech's Waveguide Diplexer FIDX-1929W00 operates at 17–21 GHz and 27–31 GHz for K- & Ka-band SATCOM applications, offering high power handling and dependable performance.

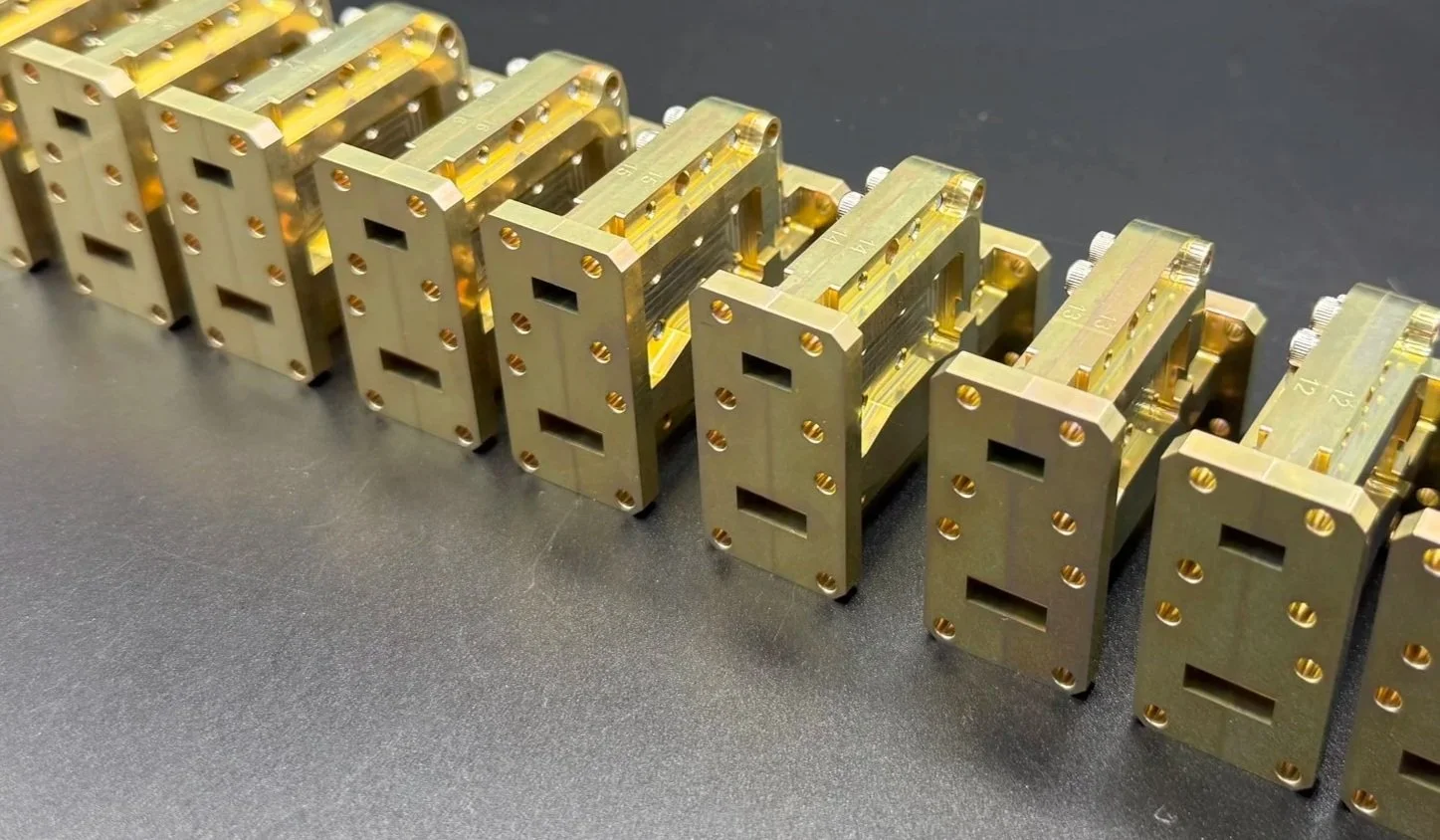

Waveguide Diplexer for 17.0 - 21.0 GHz and 27.0 - 31.0 GHz



Part Number: FIDX-1929W00

The Raytech's Waveguide Diplexer FIDX-1929W00 operates at 17–21 GHz and 27–31 GHz, engineered for K- and Ka-band SATCOM systems. It delivers 80 dB isolation, optimal channel separation, high power handling, and dependable performance for satellite communication links in both commercial and defense applications.

Electrical Specifications:

  • Frequency Range: 17 - 21 & 27 - 31 GHz

  • Rejection: 80 dB

  • Passband Insertion Loss: 0.3 dB

  • Return Loss: 15 dB

More Information:

Mechanical Specifications:

• Size: 0.88" (L) X 2.30" (W) X 1.71" (H)

  • L and A Port: WR-42, UG-595/U

  • Hport: WR-28, UG-599

  • Material: Aluminum
