WR-42 to 2.92mm Female K & Ka-band (17 - 31 GHz) Waveguide to Coax Adapter
MODEL NUMBER: TRCW-429FEZ0 - K- & Ka-band, WR-42, 17 - 31 GHz

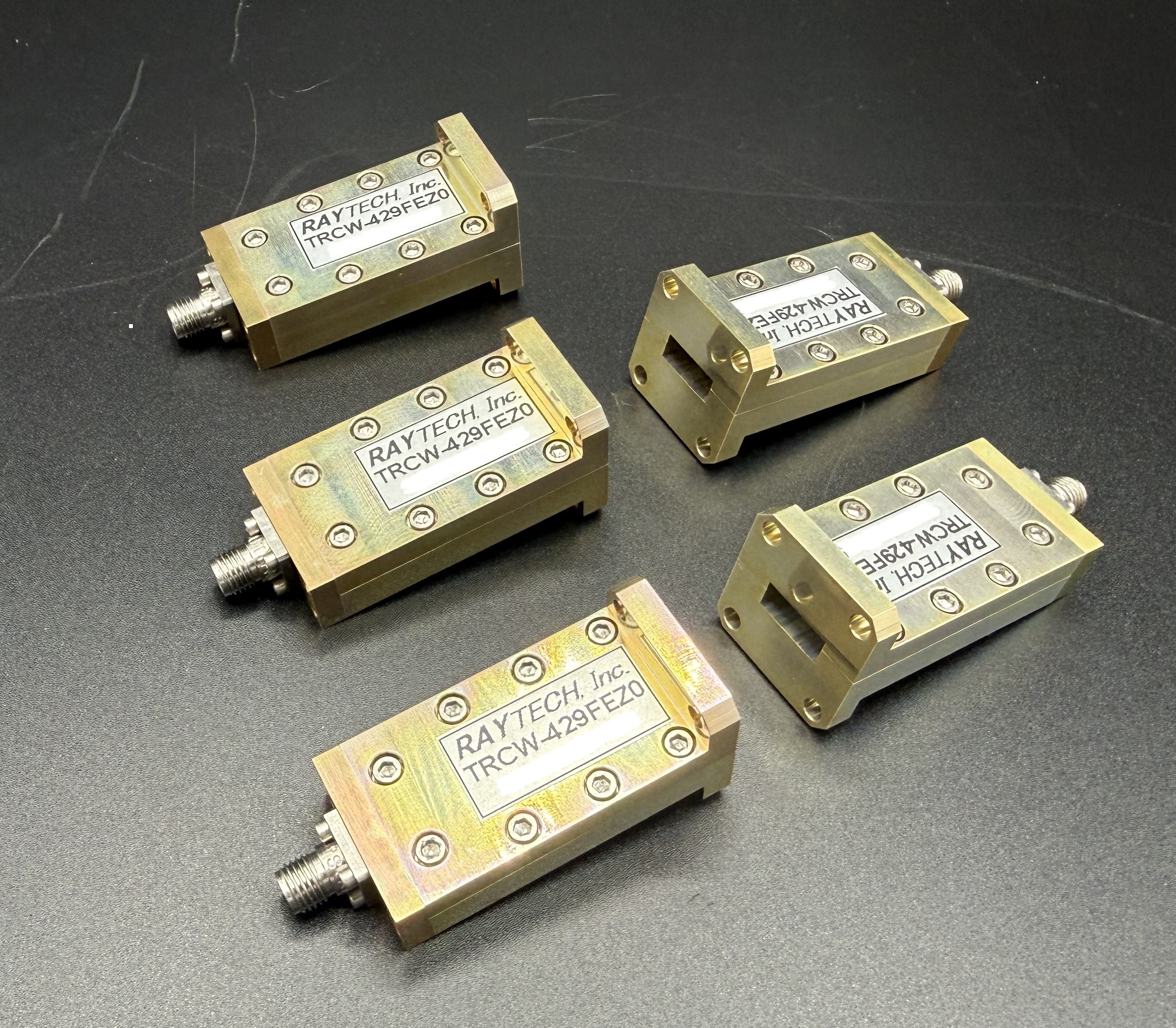

The TRCW-429FEZ0 is a precision waveguide-to-coax adapter engineered for demanding K-band and Ka-band applications, including satellite communications (SATCOM), radar, and millimeter-wave test systems. This end-launch adapter provides a low-loss, high-return-loss transition between WR-42 waveguide and 2.92 mm coaxial interfaces across the full 17–31 GHz frequency range, with a typical insertion loss of 0.3 dB and 15 dB minimum return loss for stable, high-integrity signal performance. Built with a rugged aluminum body and chromate finish for corrosion resistance, the TRCW-429FEZ0 is ideal for K/Ka-band SATCOM ground terminals, satellite payload integration, waveguide antenna feed networks, and mm-wave laboratory test benches.
Electrical Specifications:
Frequency Range: 17 GHz to 31 GHz
Insertion Loss: 0.3 dB
Return Loss: 15 dB
Mechanical Specifications:
Waveguide: WR-42, UG-595/U
Coax Connector: 2.92 mm (Female)
Configuration: End Launch
