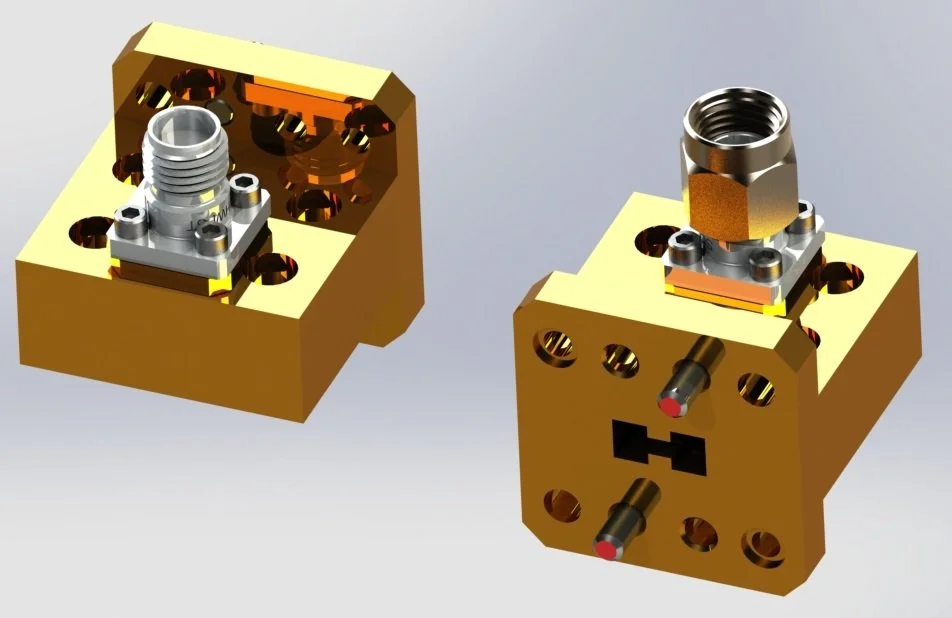

WRD-180 to 2.92 mm Male K & Ka-band Waveguide to Coax Adapter Right-Angle
MODEL NUMBER: TRCW-D89MRG0 - K & KA, WRD-180, 18 - 40 GHz
The WRD-180 to 2.92 mm Male Waveguide-to-Coax Adapter delivers a precision transition from WRD-180 double-ridged waveguide to a high-performance 2.92 mm coaxial interface. Equipped with a UG-1587 flange, it is designed for broadband operation from 18 to 40GHz, ensuring low VSWR and minimal insertion loss across the entire band.
Its robust design and tight-tolerance alignment make it ideal for satellite communication terminals, broadband radar systems, electronic warfare equipment, and high-frequency lab testing. Precision CNC machining and durable construction guarantee long-term stability in both laboratory and field environments.
Electrical Specifications:
Frequency Range: 18 GHz to 40 GHz
Insertion Loss: 0.3 dB
Return Loss: 15 dB min
Mechanical Specifications:
Waveguide: WR-180, UG-1587
Coax Connector: 2.92 mm Male
Size: 0.88” x 0.88” x 0.9”
Configuration: Right Angle
