Waveguide Combiner, Magic-Tee based, 2-way, 60 - 90 GHz, High Isolation
Part Number: CBIM-SA0FB00

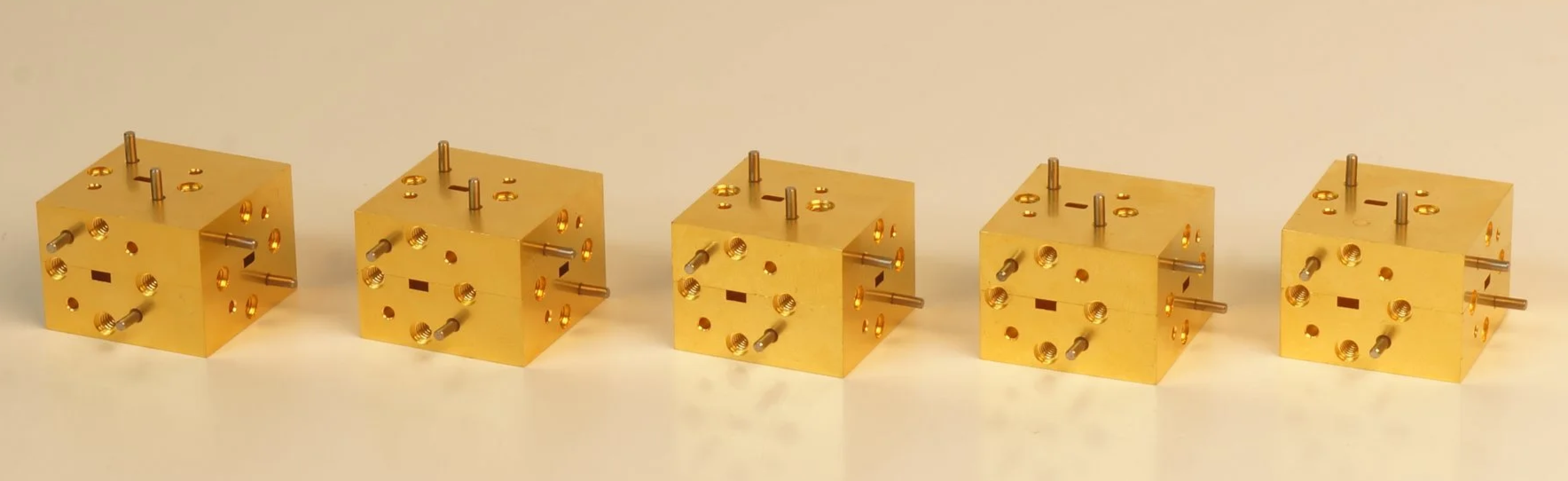

The Raytech Magic-Tee based 2-way Waveguide Combiner, model CBIM-SE0FB00, operates across 60.0 - 90.0 GHz with a low-profile design and 100% full waveguide bandwidth. Its center matching post built into the bottom housing enhances alignment and structural integrity, ensuring exceptional reliability and performance for demanding RF and microwave applications.
Electrical Specifications
Operating Frequency: 60.0 - 90.0 GHz
Insertion Loss: 0.4 dB with 0.3 dB Amplitude Imbalance
Isolation (P2 - P3): 23 dB Isolation (P1 - P4): 30 dB
Mechanical Specifications:
Ports: UG-387/U
Size: 1.00” (L) x 1.00” (W) x 0.75” (H)
Material: Aluminum
Finish: Chromate / Hard Gold
