Waveguide Combiner, TM01 based, 16-way, 75 - 85 GHz, Radial Combiner
Part Number: CBTM-1680W0

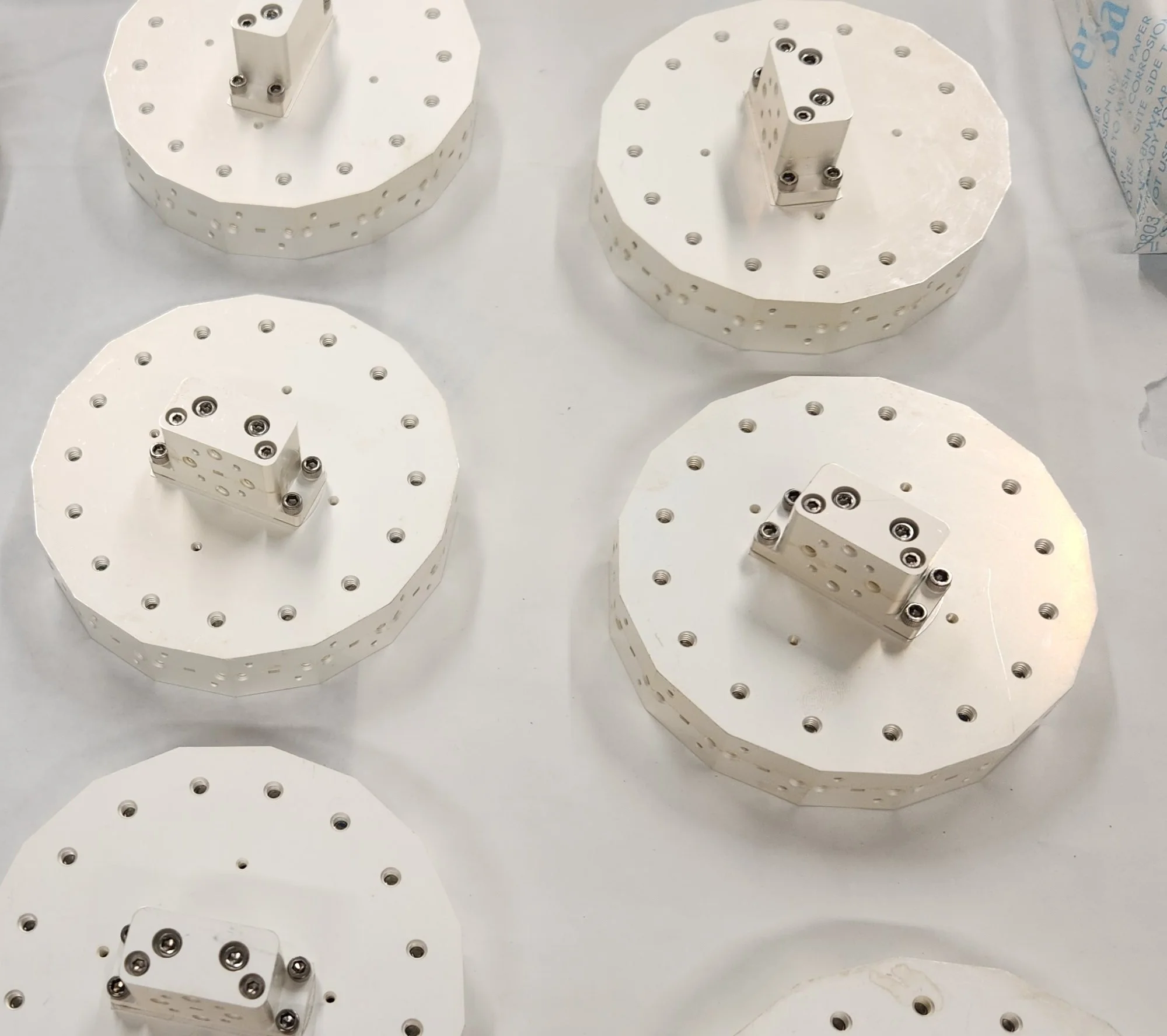

The Raytech TM01 based 16-way Radial Waveguide Combiner (Model CBTM-1680W0) operates across 75–85 GHz with an ultra-low 0.3 dB insertion loss and high power handling capability. Its precision radial combiner design provides excellent amplitude and phase balanced distribution, ensuring efficient and reliable signal combining for the most demanding mmWave applications.
Electrical Specifications
Operating Frequency: 75.0 - 85.0 GHz
Insertion Loss: 0.3 dB
Amplitude Imbalance: +/- 0.2 dB
Mechanical Specifications:
Ports: WR-10, UG-387/UM
Size: 3.85” Dia. x 1.56” (H)
Material: Aluminum
Finish: Silver
